New ALTENDORF F45 ProDrive with CNC Rip Fence (Dual-Tilt) | Standard Sliding Table Saws
Have one to sell?
ConditionNew
1 available
New

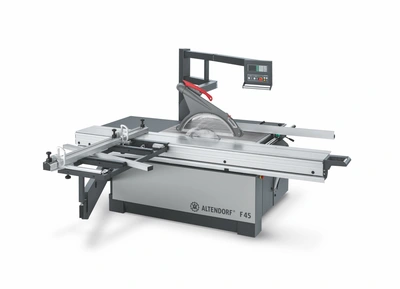

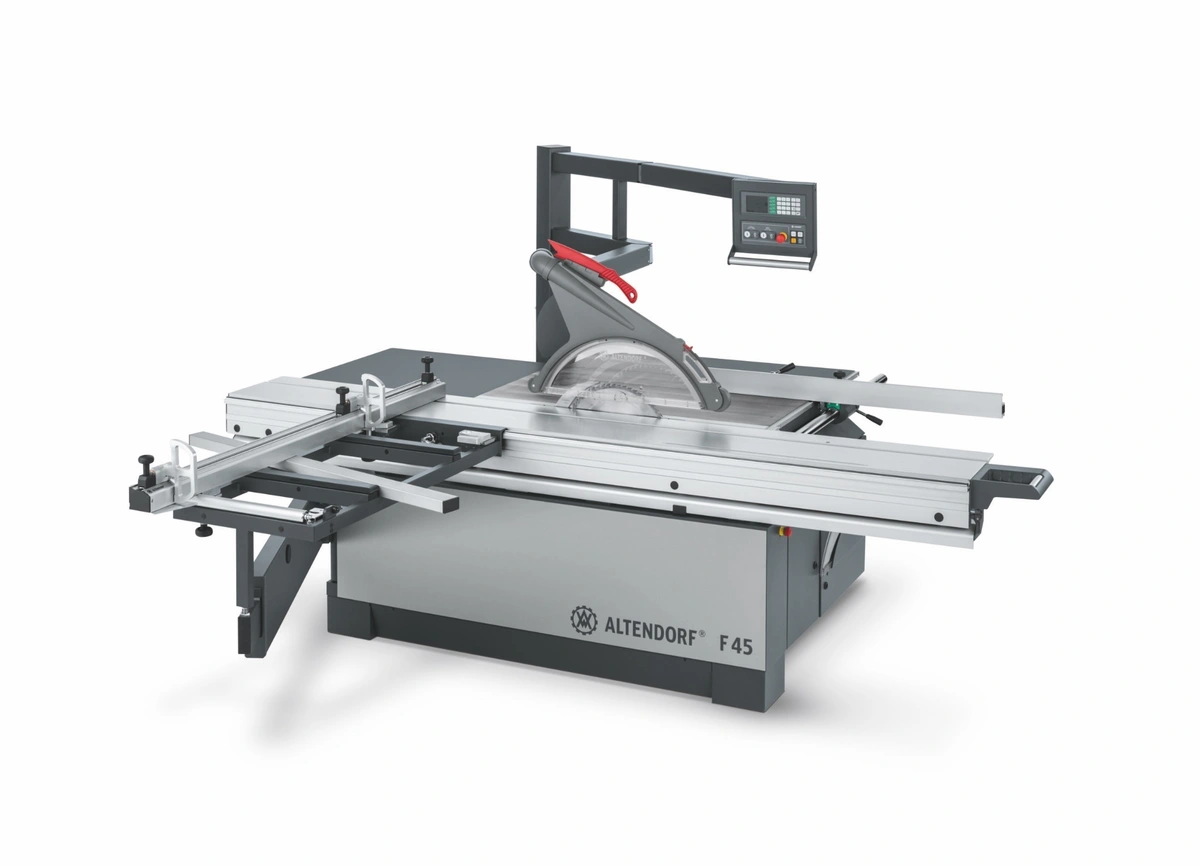

The flagship Altendorf F45 is a high-precision sliding table saw known for its exceptional accuracy, durability, and versatility. It is specifically designed for professional woodworking and features a robust sliding table, advanced digital controls, and a powerful motor that ensures smooth and precise cuts in various materials, including wood and wood-based materials, plastics and composites, non-ferrous metals, and other advanced materials. The Altendorf F45 is widely used in cabinetmaking, furniture production, sign-making, and metalworking industries, making it an ideal solution for professionals who require precise and efficient cutting.
CONTROL
Control type: ProDrive
Control panel: Mounted at eye level, swiveling
Display: Digital for tilt angle Rip fence position
Functions:
- Sawblade specifications
- Sawblade height and tilt positions
- CNC rip fence position
- Grooving
- 99 position memory"
MAIN SAW UNIT
Motor: 5.5 kw (7.5 hp) high torque
RPM: 3,000, 4000 & 5,000
Blade rise and fall adjustment: Powered
Tilt mechanism: Powered
Tilt range: 0 - +46°
MAIN SAWBLADE DETAILS
Max blade dia: 450 mm (17.7”) (scoring saw must be removed when using blade larger than 400 mm (15.7”))
Max blade width (Dado set for grooving): 20 mm (0.78”)
Arbor dia: 30 mm
Pin holes: 2 x 10 mm @ 60 mm centers
Included main blade: 300 mm dia 72T
Riving knives included: 3 (to suit blades 300 – 450 mm dia)
SAW BLADE PROJECTION
90° with max 450 mm dia blade: 154 mm (6”) scoring blade removed
+45° with max 450 mm dia blade: 105 mm (4”) scoring blade removed
90° with 400 mm dia blade: 130 mm (5.1”) with scoring blade
+45° with 400 mm dia blade: 81 mm (3.1”) with scoring blade
DADO CAPACITY
Maximum width of dado: 20 mm (25/32”)
SCORING UNIT
Motor: 0.75 kW (1 hp)
RPM: 8,200
Scoring unit 2 axis adjustment:
- Height Motorized
- Lateral Motorized"
Scoring blade RAPIDO shimless system
LED indicating when scorer is in operation Included
SCORING BLADE DETAILS
Blade dia: 120 mm (4.7”)
Adjustment range: 3 – 3.8 mm (0.118” – 0.15”)
SLIDING TABLE
Sliding table length: 3200 mm (126”)
Cutting length: 3105 mm (122”)
Stop / start buttons: On control and sliding table
Table locking mechanism: Infinite
Maximum weight supported: 250 kg (550lbs)
CROSSCUT FENCE
Type: Cross cut mitre
Maximum length: 3500 mm (137”) with included extension
Type of cross stop: Manual
Number of stops: 2
Readout: scale
Miter angle capacity: 0 – 49°
RIP FENCE
Ripping capacity: 1300 mm (51”)
Adjustment: Programable
Readout: Digital
Traverse speed: 250 mm / sec (9.8” / sec)
Accuracy: +/- 1/10 mm (0.004”)
SERVICES
Connecting electrics: 220 or 440v 3ph 60Hz (acceptable tolerance range +5% / -10%)
Full load amps: 30 amps @ 220v 15 amps @ 440v
Dust extraction: Approx. 900 cfm
Saw guard port: 80 mm (3.15”)
Bottom port: 120 mm (4.75”)
SHIPPING DIMENSIONS
Two pieces Approx length, width, height, weight
- Machine 91” x 75” x 78” 2700 lbs
- Table 140” x 30” x 18” 550lbs"
