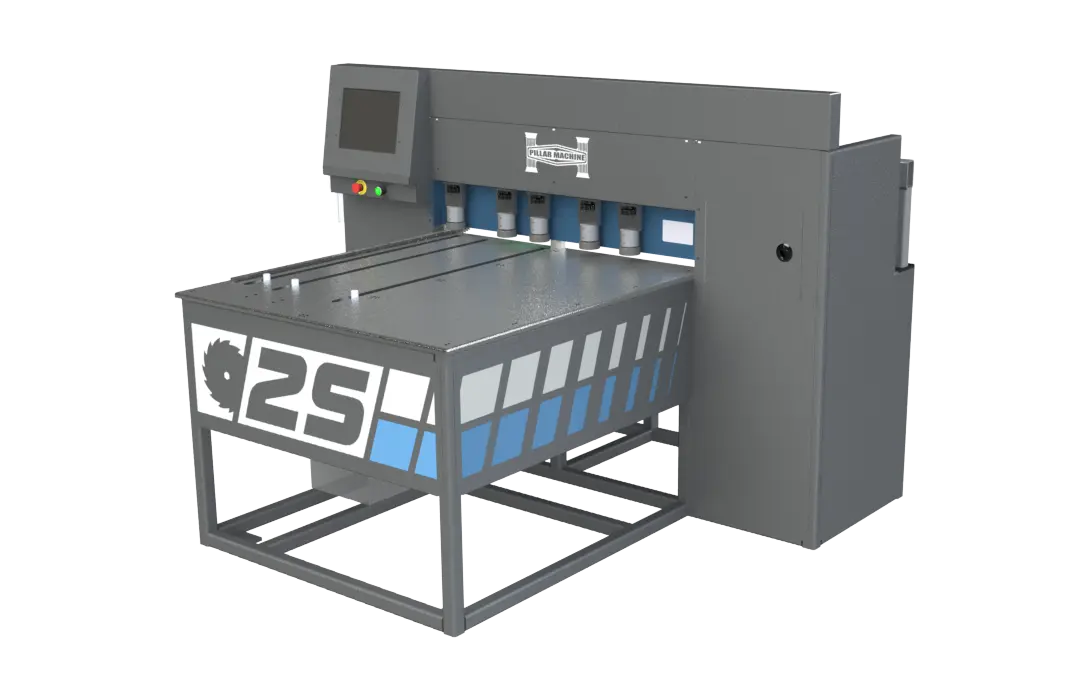

Panel Sizing & Squaring Machine

Description

One of the greatest features of the 2S is the safety factor. The potential risk of getting any fingers in the way of the saw blade is nearly non-existent. The design of the machine itself along with the process of how an operator uses the machine keeps hands clear of the moving blade during proper use.

Standard Operation

Safety is a large concern when ripping and crosscutting solid wood. This machine eliminates those concerns with its “hands-off” approach to preforming cuts. Safety is also a concern when managing the waste that is normally produced from this rip and crosscut process. The 2S eliminates this issue by dropping it off the backside of the machine to be collected into a scrap bin.

2S has touch screen controls to enter the panel dimension. The 2S machine uses these dimensions to control the CNC fence for positioning. Once a part size is entered the machine will process three sides of it to make it accurately sized and squared. This takes about 20 seconds to process all three sides.

Because of the machines design, all scrap is removed automatically allowing the operator to concentrate on producing a quality product.

This raised panel door machine can also be Pillar-Linked to any order entry program and scan bar codes to virtually eliminate the need for the operator to do anything other than load the part to be cut. See barcode scanner details in the option section.

2S Advantages:

• Safe
• Quick
• Accurate
• Simple to use
