Safe and Ergonomic Handling of Glass Outdoors up to 1000 kg

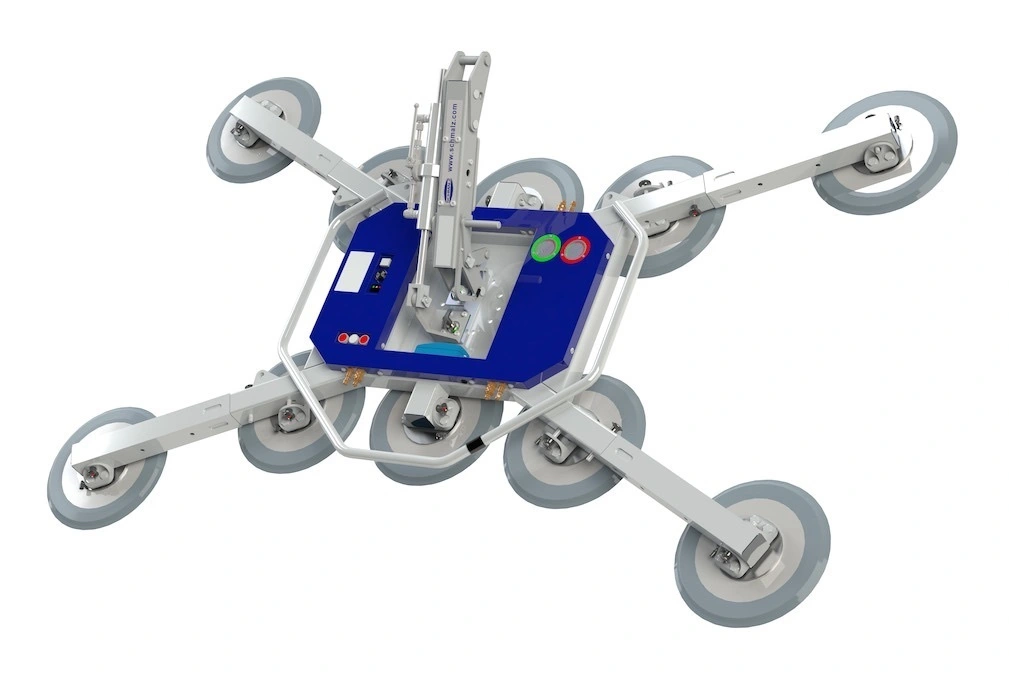

The VacuMaster Glass 1000 is the ideal lifting device for safe handling of glass workpieces in outdoor areas. It is suspended from a construction site crane and enables loads of up to 1000 kg to be lifted effortlessly in both horizontal and vertical directions. The workpieces can be swivelled through 90°, rotated through 360° and fixed in 45° steps. The slewing process can be accelerated and slowed down by manual adjustment on the lowering cylinder. Due to the modular design and the easily pluggable components, the lifting device can be adapted to different workpiece dimensions. The function "vacuum on/off" can be controlled by two push buttons on the device or optionally by a radio remote control.
The VacuMaster Glass 1000 operates independently of the power supply. An LED display provides information about the charge status of the rechargeable and replaceable 12V battery.
Application
• Handling of windows, glass sheets and facade elements up to 1,000 kg in outdoor areas
• Handling of windows with muntins and mullions using optional suction cup spacers (with reduced lift capacity)
• The optimized weight of the VacuMaster Glass is between 130 kg and 140 kg
• Specially designed for outdoor use with UV and ozone resistant suction plates with a protective cover
The VacuMaster Glass 1000 was designed for loads of up to 1000 kg (horizontally and vertically). The optimized dead weight of the lifting device is between 130 kg and 140 kg. The load capacity depends on the number of suction plates used (100 kg/suction plate)
Energy supply: battery 12 V/4 A
Battery capacity: 7 Ah
Operating temperature: 0°C to 40 °C
