VacuMaster Light 100-1
Have one to sell?
ConditionNew
New

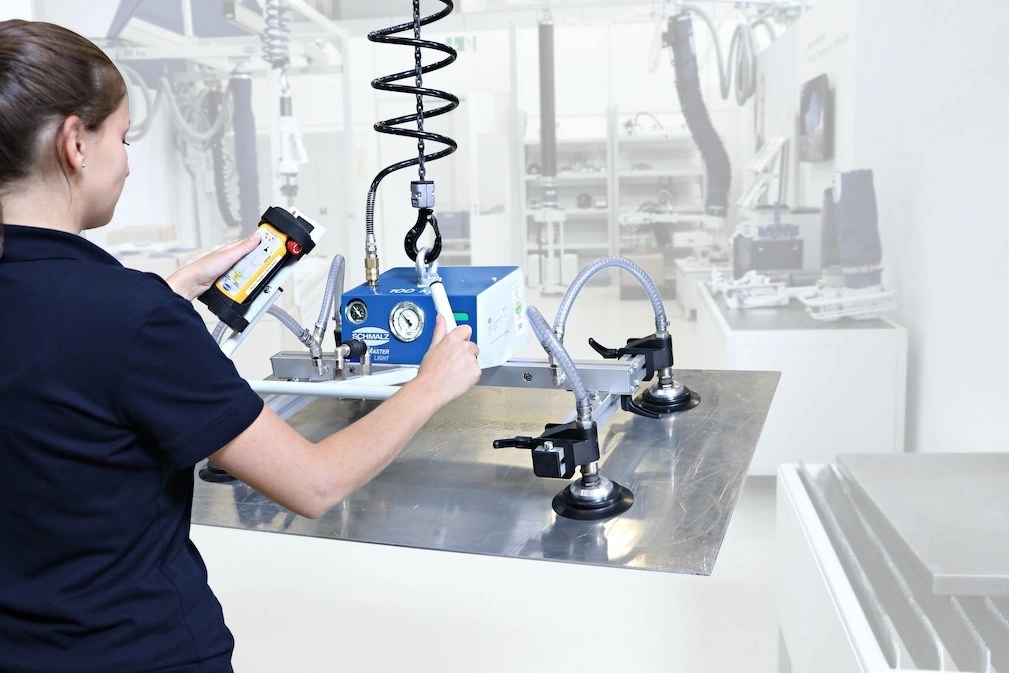

Horizontal handling of small to mediumsized workpieces
Application
• Horizontal handling of small to medium-sized workpieces up to 100 kg
• Handling of metal plates, plastic sheets, barrels, furniture bodies, furniture parts or sections
• Versatile use in processes such as component assembly, packaging and machine loading
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.
Max. lift capacity* [kg]
100
Min. workpiece format [mm]
250 x 250
Max. workpiece format [mm]
1.500 x 800
Length L [mm]
260
* Higher lift capacities available on request
No. of sution plates
1
Ø suction plates [mm]
250
Overall height H [mm]
270
Operator handle L1 [mm]
405
Weight [kg]
15
