VacuMaster Comfort 250
Have one to sell?
ConditionNew
New

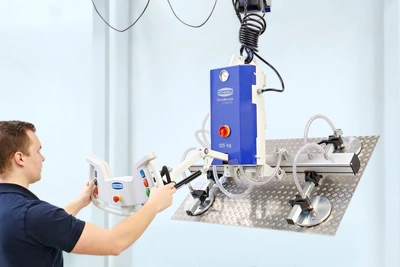

The VacuMaster Comfort bases on the modular system of the VacuMaster Basic and offers an operator handle that brings together all of the device’s controls as well as a controlled vacuum generator for reducing energy consumption.
A Schmalz chain hoist is required to operate a VacuMaster Comfort.
Application
• Handling of large and flat, mostly airtight loads and workpieces
• Loading and unloading of CNC laser cutting machines with metal sheets
• Loading and unloading of CNC machining centers with airtight wooden boards or plastic sheets
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.
Technical Data Vacuum Lifting Device VacuMaster Comfort: Horizontal Handling
Type* Max. lift capacity [kg]
Comfort 250
Workpiece format [mm]
1,000 x 1,000
2,000 x 1,000
2,500 x 1,250
3,000 x 1,500
4,000 x 2,000
Dimensions LL x LQ [mm]
800 x 750
1,600 x 750
1,600 x 750
2,400 x 1,150
3,200 x 1,500
Overall height H [mm]
445
445
525
590
590
Suction plates [no.]**
1
2
4
6
8
Sucdtion Plates Ds [mm]
360
250
210
160
125
Weight [kg]
45
52
62
67
88
*The shown VacuMaster are example configurations: The VacuMaster Basic/Comfort can be adapted flexibly to individual workpiece formats.
**The indicated number of suction plates is possible for handling of rigid goods. For unstable and thin workpieces the numbers of suction plates will be increased.

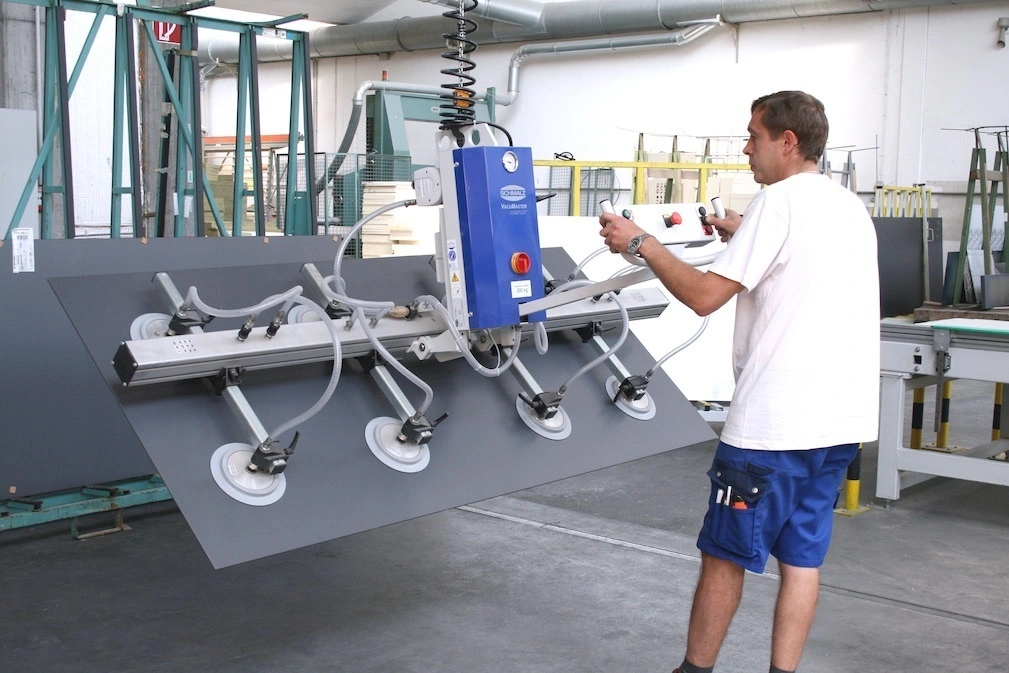

Technical Data Vacuum Lifting Device VacuMaster Comfort: 90° Swiveling
Type* Max. lift capacity [kg]
Comfort 125
Workpiece format [mm]
2,500 x 1,250
4,000 x 2,000
Dimensions LL x LQ [mm]
1,600 x 750
3,200 x 1,500
Overall height H [mm]
800
800
Suction plates** No.
4
8
Sucdtion Plates Ds [mm]
260
210
Weight [kg]
93
104
*The shown VacuMaster are example configurations: The VacuMaster Basic/Comfort can be adapted flexibly to individual workpiece formats.
**The indicated number of suction plates is possible for handling of rigid goods. For unstable and thin workpieces the numbers of suction plates will be increased.
Technical Data Vacuum Lifting Device VacuMaster Comfort: 180° turning
Type* Max. lift capacity [kg]
Comfort 125
Workpiece format [mm]
2,000 x 1,000
2,500 x 1,250
4,000 x 2,000
Dimensions LL x LQ [mm]
1,600 x 750
1,600 x 750
3,200 x 1,500
Overall height H [mm]
1,770
1,750
1,750
Suction plates** No.
4
8
8
Sucdtion Plates Ds [mm]
360
210
210
Weight [kg]
139
147
167
*The shown VacuMaster are example configurations: The VacuMaster Basic/Comfort can be adapted flexibly to individual workpiece formats.
**The indicated number of suction plates is possible for handling of rigid goods. For unstable and thin workpieces the numbers of suction plates will be increased.
