VacuMaster Basic
Have one to sell?
ConditionNew
New
The VacuMaster Basic’s versatile standard equipment makes it indispensable for many applications. In addition, the VacuMaster Comfort offers an operator handle that brings together all of the device’s controls as well as a controlled vacuum generator for reducing energy consumption.
Application

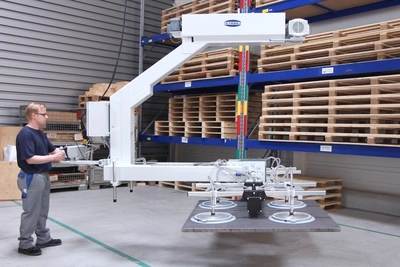

• Handling of large and flat, mostly airtight loads and workpieces

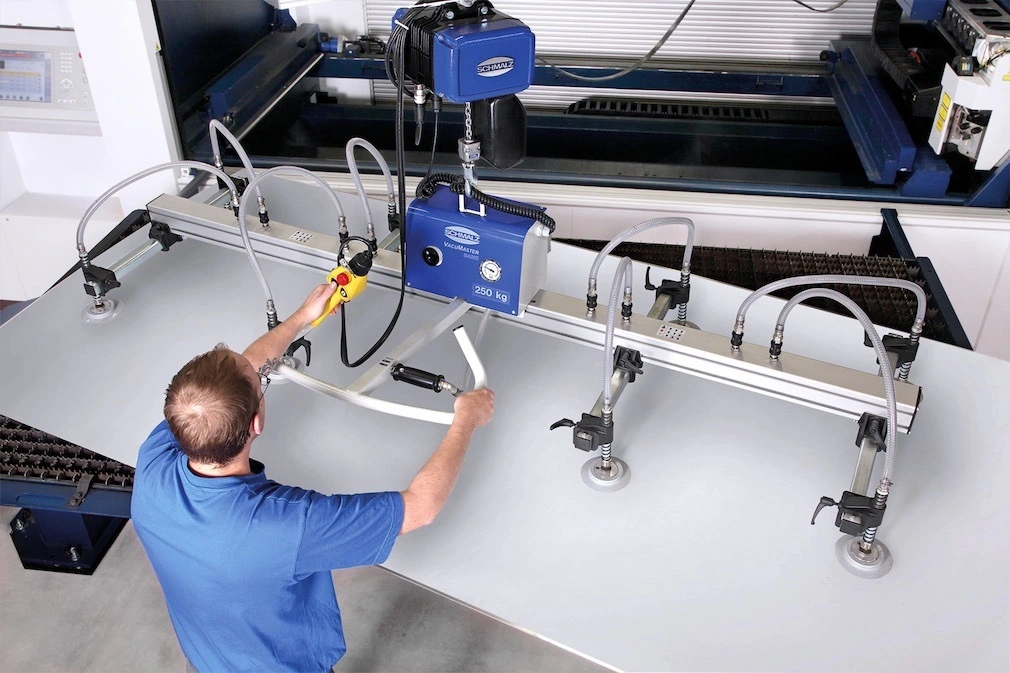

• Loading and unloading of CNC laser cutting machines with metal sheets
• Loading and unloading of CNC machining centers with airtight wooden boards or plastic sheets
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.
Technical Data Vacuum Lifting Device VacuMaster Basic: Horizontal Handling
Type* Max. lift capacity [kg]
Basic 125
Workpiece format [mm]
1,000 x 1,000
2,000 x 1,000
2,500 x 1,250
3,000 x 1,500
4,000 x 2,000
Dimensions LL x LQ [mm]
800 x 750
1,600 x 750
1,600 x 750
2,400 x 1,150
3,200 x 1,500
Overall height H [mm]
490
410
490
555
555
Suction plates [no.]**
1
2
4
6
8
Sucdtion Plates Ds [mm]
250
210
125
125
125
Weight [kg]
38
42
52
62
80
*The shown VacuMaster are example configurations: The VacuMaster Basic/Comfort can be adapted flexibly to individual workpiece formats.
**The indicated number of suction plates is possible for handling of rigid goods. For unstable and thin workpieces the numbers of suction plates will be increased.
Technical Data Vacuum Lifting Device VacuMaster Basic: 90° Swiveling
Type* Max. lift capacity [kg]
Basic 125
Workpiece format [mm]
2,000 x 1,000
2,500 x 1,250
4,000 x 2,000
Dimensions LL x LQ [mm]
1,600 x 750
1,600 x 750
3,200 x 1,500
Overall height H [mm]
720
800
800
Suction plates** No.
2
4
8
Sucdtion Plates Ds [mm]
360
210
210
Weight [kg]
74
79
94
*The shown VacuMaster are example configurations: The VacuMaster Basic/Comfort can be adapted flexibly to individual workpiece formats.
**The indicated number of suction plates is possible for handling of rigid goods. For unstable and thin workpieces the numbers of suction plates will be increased.
Technical Data Vacuum Lifting Device VacuMaster Basic: 180° turning
Type* Max. lift capacity [kg]
Basic 125
Workpiece format [mm]
2,000 x 1,000
2,500 x 1,250
Dimensions LL x LQ [mm]
1,600 x 750
1,600 x 750
Overall height H [mm]
1,160
1,230
Suction plates** No.
2
4
Sucdtion Plates Ds [mm]
360
210
Weight [kg]
87
92
*The shown VacuMaster are example configurations: The VacuMaster Basic/Comfort can be adapted flexibly to individual workpiece formats.
**The indicated number of suction plates is possible for handling of rigid goods. For unstable and thin workpieces the numbers of suction plates will be increased.
