Vacuum Tube Lifters JumboSprint EX
Have one to sell?
ConditionNew
New
Safe Handling in an Explosion Protection Zone
Application
• Fast and frequent lifting and moving of compact workpieces up to 250 kg in ATEX zone 2/22 and up to 85 kg lift capacity in ATEX zone 1/21

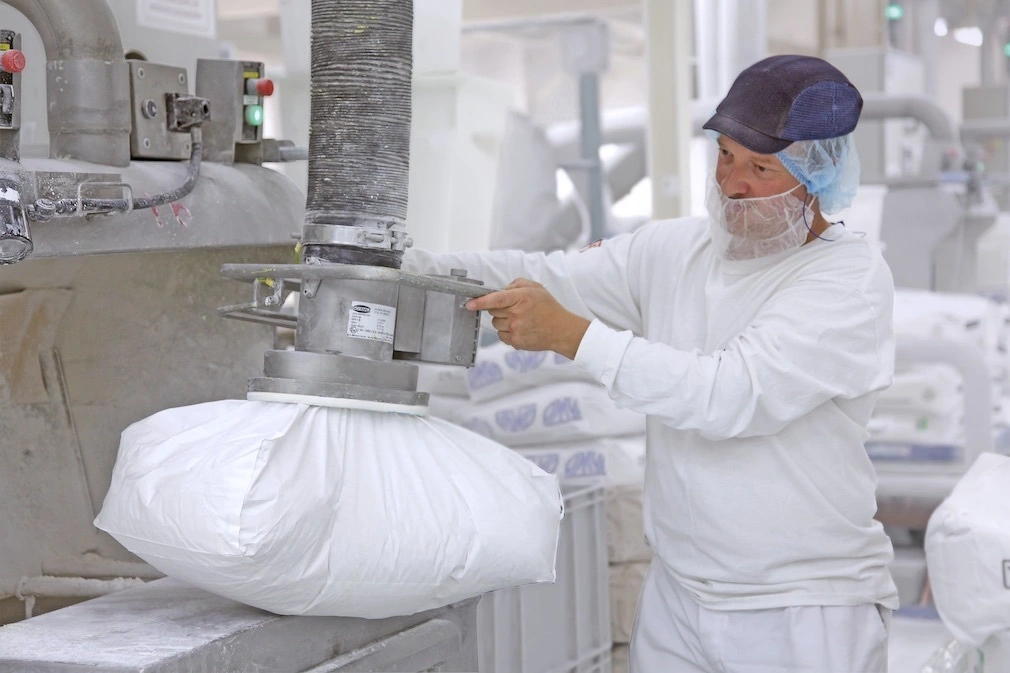

• Handling of workpieces such as bags, barrels, buckets, jugs and rubber bales in explosion protection zones
• Ensures efficient material flows during loading or unloading of mixing machines
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.
Workpiece format* Min [mm]
300x200
300x200
Workpiece format* Max [mm]
3,000x1,000
3,000x1,000
Max. lifting speed [m/min]
60
60
Max. lifting stroke Z [mm]
1,700
2,100
Height H** [mm]
2,850
3,400
Operator handle length L [mm]
250-500
250-500
*Depends on the vacuum gripper chosen
**Vacuum gripper not included (total height = H + height of the vacuum gripper)
