Vacuum Tube Lifters JumboSprint 300
Have one to sell?
ConditionNew
New
The JumboSprint is equipped with a bow-shaped operator handle which extends all the way around the unit. This allows the user to optimally position it on compact goods such as bags or rubber bales. The load is raised by pulling up on the handle lever and lowered by pushing down.
Application
• Fast and frequent lifting and moving of compact workpieces up to 300 kg

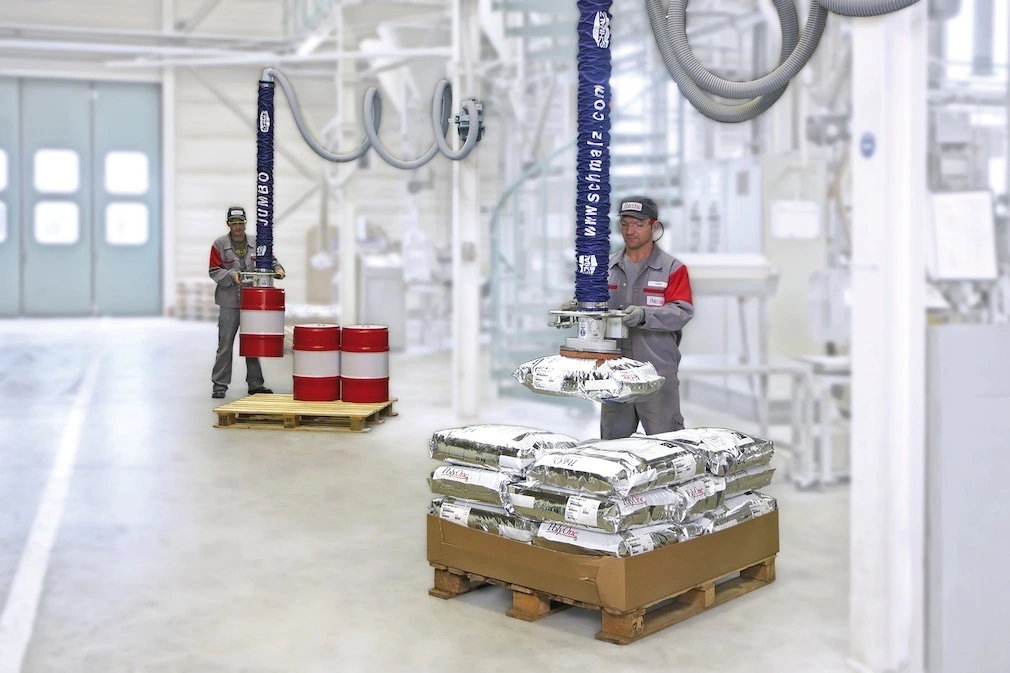

• Handling of workpieces such as bags, barrels, buckets, jugs and rubber bales in internal logistics processes
• Ensures the flow of materials when loading or unloading of mixing machines
• Available in a stainless steel version for special ambient conditions, e.g. in food related areas
Awarded the seal of approval by Aktion Gesunder Rücken e. V.
Schmalz vacuum lifters and crane systems support the back and musculoskeletal system when lifting light and heavy loads. They reduce strain and help to make the work environment ergonomic. This is confirmed by the independent association Aktion Gesunder Rücken e. V. (AGR) with its seal of approval.

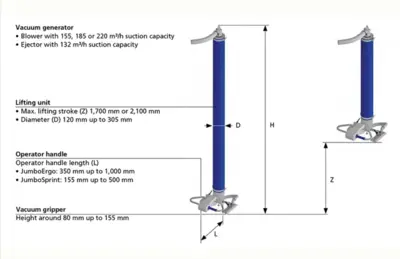

The vacuum tube lifters JumboErgo and JumboSprint can be configured specifically based on the requirements of each individual application due to their modular design. The technical data varies depending on the configuration and on the vacuum gripper chosen.
The following technical data are standard values.
Workpiece format* Min [mm]
300x200
300x200
Workpiece format* Max [mm]
3,000x1,000
3,000x1,000
Operator handle length L [mm]
155-500
155-500
Max. lifting speed [m/min]
60
60
Max. lifting stroke Z [mm]
1,700
2,100
Height H** [mm]
2,850
3,400
Max. lift capacity [kg]
Horizontal - 300
90° swivel -
Ø Lift tube D [mm]
305
A lift capacity of 140 kg and higher applies: lifting stroke Z +160 mm, height H +250 mm
*Depends on the vacuum gripper chosen
**Vacuum gripper not included (total height = H + height of the vacuum gripper)
