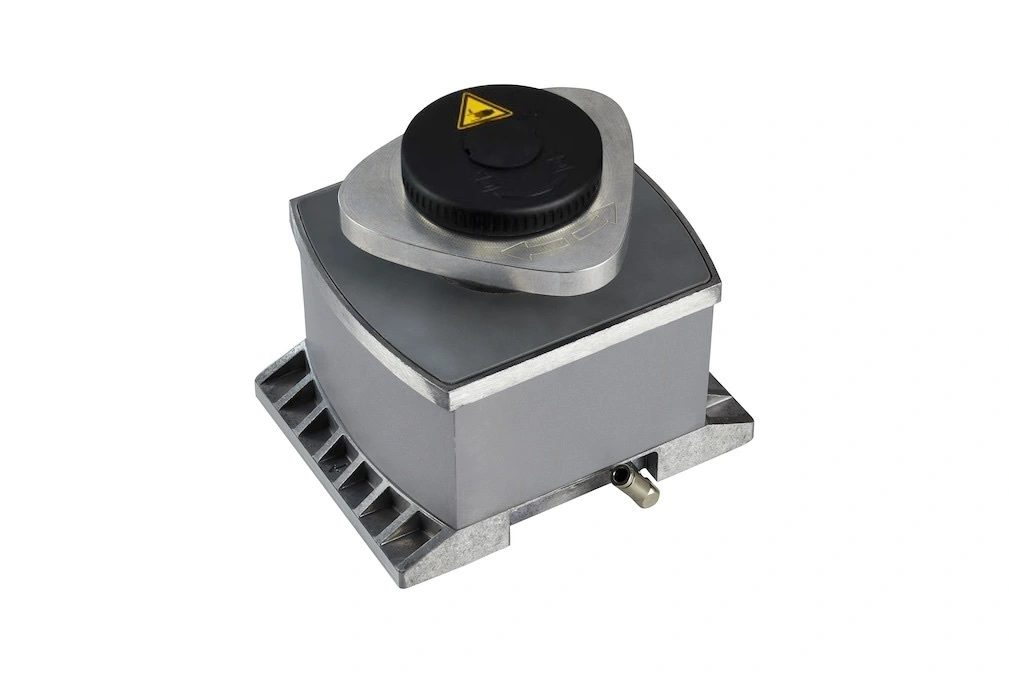

Mechanical Clamps VCMC-G-QUICK

Description

• Mechanical clamping system for CNC machining machines with flat table system

• Particularly suitable for narrow and curved workpieces such as frame parts and window profiles

• Set-up is efficient, safe and tool-free; the clamp is fixed to the machine table by vacuum

• Tool-free adjustment of the clamping height to the workpiece within seconds

• Clamping of the workpiece by activating the vacuum on the machine table

Product Highlights

• Triangular clamping disc with tool-free quick adjustment enables shortest set-up times

• Clamping force of 700 N ensures safe clamping even with narrow workpieces

• No additional medium required, as the clamp can be activated via operating vacuum of the CNC machining centre

• Special friction materials on the clamping disc and clamping surface ensure a secure hold even with high machining forces

• Can be used for a wide range of workpieces thanks to its very large clamping range
