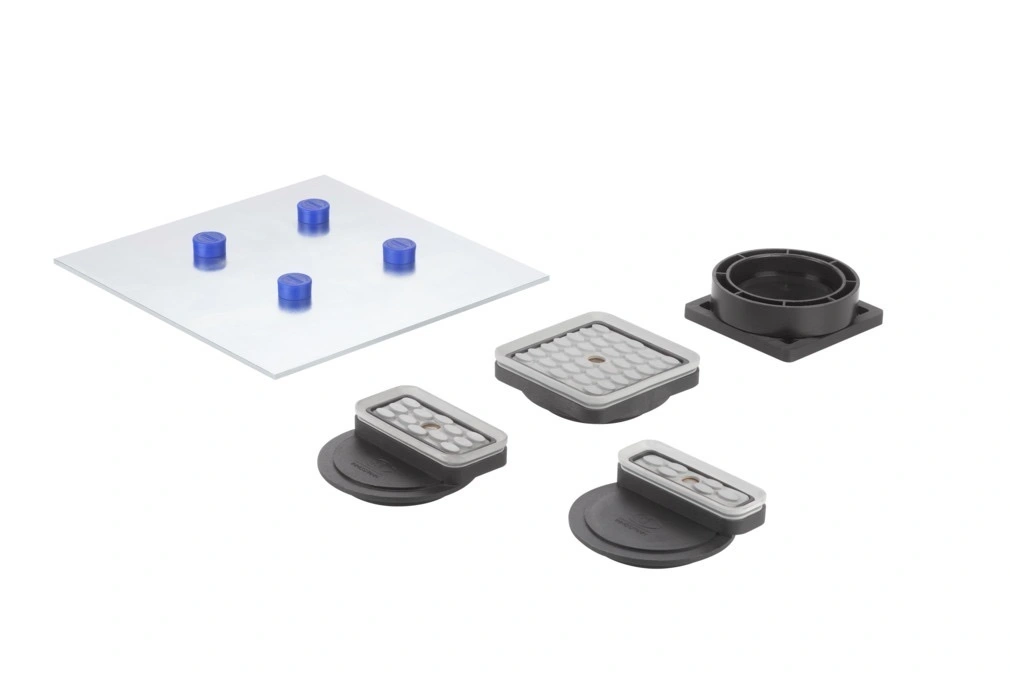

Adapter-Plates ISAP-S

Description

• Hose-free Schmalz clamping system for console tables from SCM / Morbidelli, fully compatible with original equipment

• The Adapter-Plates are positioned directly onto the vacuum supply on the consoles

• Equipping the ISAP-S with up to four additional Mono-Bases and suction cups

• Particularly suitable for narrow and curved workpieces with small suction surfaces and delicate molds

• Overall height can be adapted with the spacer rings

• TVN System from SCM = S4 System from Schmalz (width of the console 109 mm)

Note - SCM/Morbidelli
SCM / Morbidelli is a registered and protected trademark. The articles listed here are products of J. Schmalz GmbH that have been designed to fit CNC machining centers from SCM / Morbidelli.

Product Highlights

• Ideal for narrow and curved workpieces, as plates and vacuum blocks can be flexibly combined

• Freely positionable suction cups and Mono-Bases allow almost any clamping layout

• Mixed operation with standard vacuum blocks possible for even more flexibility and short set-up times

• Accessories and spare parts can be replaced quickly, easily and cost-effectively without tools
