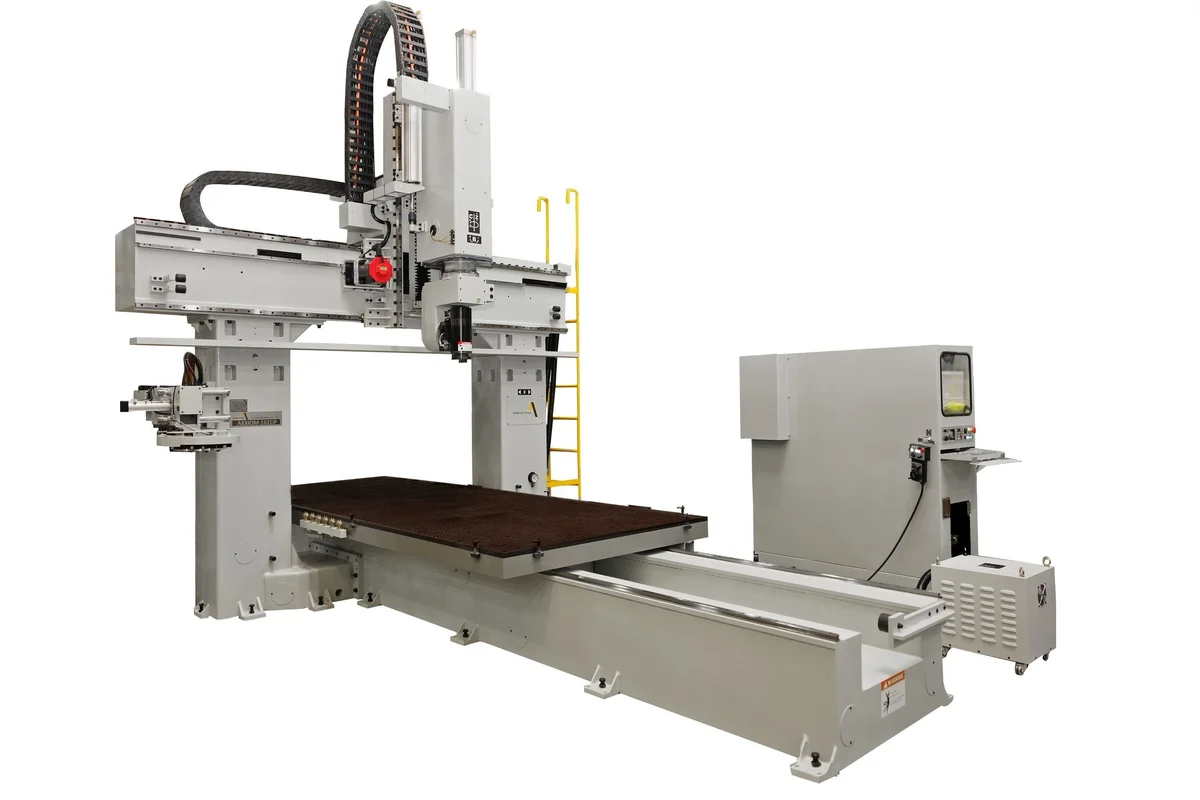

ANDERSON AXXIOM Series 5-Axis CNC Machining Center
Have one to sell?
ConditionNew
New
Transform Your Manufacturing with the AXXIOM Series 5-Axis CNC Machining Centers
Don't just keep up with industry trends—set them with the AXXIOM Series 5-Axis CNC Machining Centers. Contact us to learn how the AXXIOM Series can elevate your production to new heights.
Unmatched CNC Performance and Versatility
The AXXIOM 5-Axis Series is designed to meet the most stringent manufacturing requirements, offering a broad spectrum of applications.
Key Features:
• High-Accuracy Servo System: Ensures pinpoint precision in all 5 axes.
• Robust Steel Base: Provides long-lasting stability and durability.
• High-Speed 5-Axis Machining: Perfect for rapid production across a variety of materials.
• Anderson Fixed Bridge and Moving Table Design: Allows for easy machine access and streamlined operation.
• Customizable Options: Adapt the machine to your specific needs with various configurations and add-ons.
No. of vacuum zones 1
Table size X 1600 mm (63”)
Table size Y 1600 mm (63”)
Stroke of X-axis 2200 mm (86”)
Stroke of Y-axis 2200 mm (86”)
Stroke of Z-axis 1000 mm (39.37”)
Rapid travel Speed in X 60 meters/min (2,362”/min)
Rapid travel Speed in Y 60 meters/min (2,362”/min)
Rapid travel Speed in Z 20 meters/min (787”/min)
Maximum Rapid Traverse 85 meters/min (3,350”/min)
Spindle Power 18 HP
Max. Speed (rpm) 22,000
Clamping system HSK-63
Automatic tool changer 8 / 10 / 12/ 16
Vacuum pump 10/25/40 HP
Controller FANUC 31i or FANUC 0i
Weight 8,600 Kg (18,960 lbs.)
