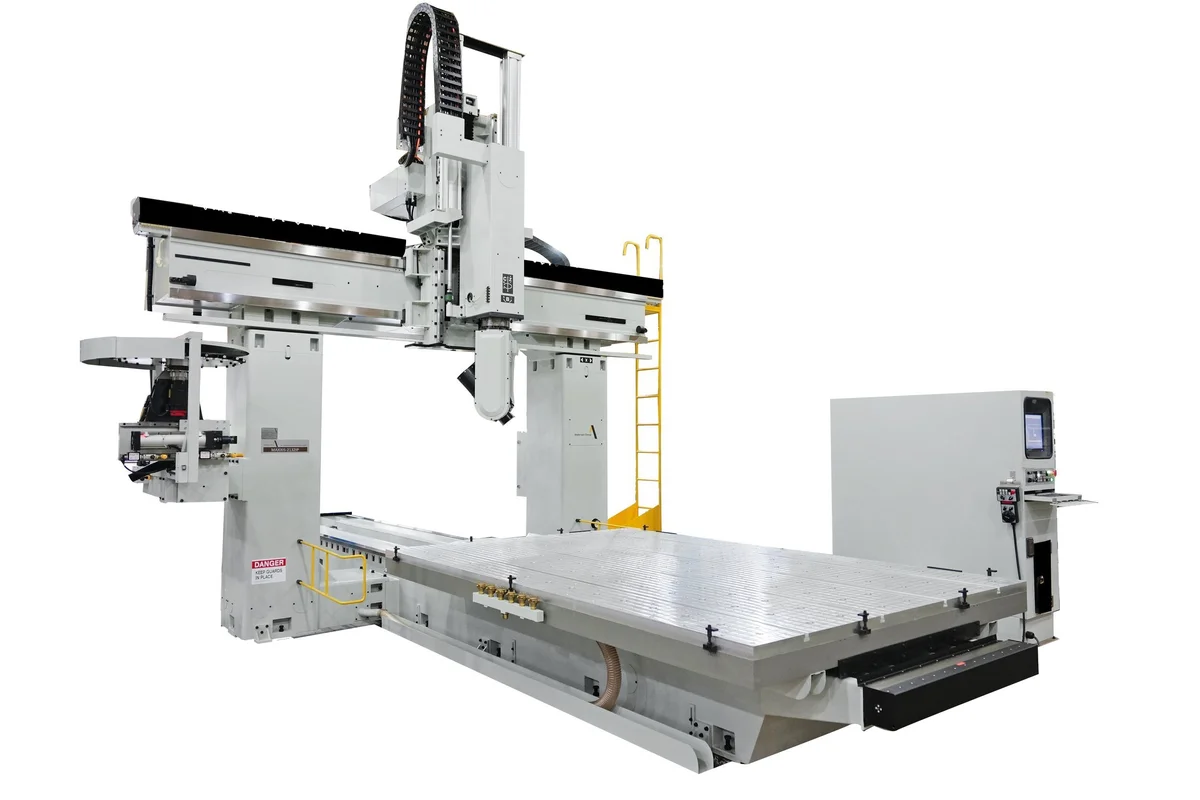

Introducing the MAXXIS Series Moving Table 5-axis Machining Centers
Cutting-edge technology meets unparalleled precision with the MAXXIS Series, designed to redefine 5-axis accuracy and machining performance.
Unmatched Precision and Performance
The MAXXIS Series is an ideal choice for machining plastics, aluminum, and composite materials, thanks to its unique features.
Key Features:
• Highly Rigid Base and Precision Gearbox: Ensures optimal performance.
• Anderson Fixed Bridge and Moving Table Design: Offers easy machine access in a compact design.
• Webbed Steel Substructure: Remains smooth and rigid during full 5-axis machining.
• Advanced 5-Axis CNC Features: Available on both models.
• Ethernet Options in CNC Controls: Enables remote technical support.
• Workpiece Holding Flexibility: Optional clamping, grid, or manifold vacuum systems.
• Industry Standard G-Code: Easy interfacing with major CAD/CAM software.
• Additional Options: Including workpiece dimension probing, single and dual zone capabilities, and custom configurations.
Table configuration Table can stroke long direction or short direction
Table Style HPL Grid or
Alum 50mm with T Slots
Zones 1 zone x 2
Table Size in mm (metric) width 1600 mm to 3100 mm
length 1800 mm to 7000 mm
Table Height 800 mm (31.5 in)
Standard Z (stroke) #1 800 - 1200 mm (31.5 - 47.2 in)
Standard Z (stroke) #2 1200 mm (47.2 in)
B and C-axis B : ± 100° | C : ± 200°
Control FANUC 31i or SIEMENS 840D
Router Spindle 12 HP, 18 HP, 24 HP (HSK 63F, 22000 rpm)
25 HP Vector (HSK 63E, 18000 rpm)
Automatic Tool Changer ATC : 10, 12, 16, 20
Ranrob : 12, 16, 20, 32
Barriers optional
Vac. Prep Kit Included
Pump Size 10,25,40,50 HP (options)
Safety fence optional
X-Drive System Ball Screw
Y-Drive System Ball Screw
V-Drive System Ball Screw
Z-Drive System Ball Screw
Rapids/cutting X,Y,Z X;Y;Z=80/80/24 m/m
Rapids/cutting C, B B&C=90°/sec 24 m/m
Remote Internet Diagnostics yes
Tool Holders Included
