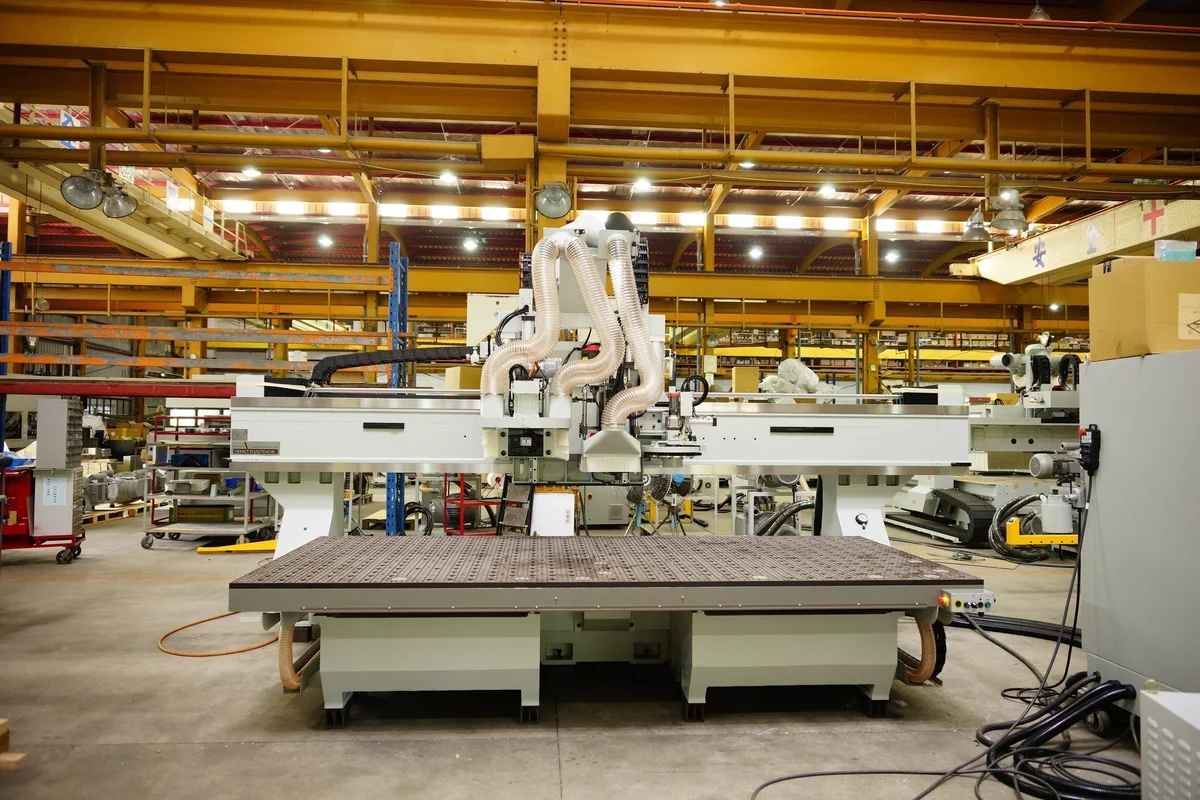

Introducing the Anderson EXXACT Duo Series
Discover the power of two with the Exxact Duo Series. Designed with two spindles and dual tables to boost your production capabilities, this series brings together high-speed and precision machining in one robust package.
Double the Precision, Double the Performance
The Exxact Duo Series, equipped with FANUC control & electronics systems, offers high precision and superior performance, doubling your productivity. Its robust construction and advanced features make it a reliable addition to any manufacturing process.
Key Features:
• Dual Spindle Design: The ANDI HSK-63F dual spindle provides high-speed and high-precision machining.
• Versatile Material Processing: Ideal for wood, MDF, plywood, plastic, honeycomb aluminum, and solid surface materials.
• Anderson Traveling Gantry Design: Ensures effortless machine access.
• Modular Design: Available in a range of formats and sizes.
• Ethernet Options: Enables remote technical support.
No. of tables 2
No. of vacuum zones per table 1
Table size X 2 x 1840 mm (2 x 72.4 in)
Table size Y 2 x 1600 mm (2 x 63 in)
Stroke of X-axis 4400 mm (174 in)
Stroke of Y-axis
Stroke of Z-axis 350 mm (14 in)
Rapid travel Speed in X 80 M/min (3150“/min.)
Rapid travel Speed in Y 80 M/min (3150“/min.)
Rapid travel Speed in Z 20 M/min (1181“/min.)
Spindle Data
Power 18 HP / 24 HP
Max. Speed (rpm) 24000
Clamping system HSK-63F
Ride along tool changer 10 / 12
Boring block 5+5 or 10+7
Vacuum pump 10/25/40 HP
Controller FANUC 0i
Dimensions: Floor Area 6000 x 3375 mm (236 x 133 in)
Height 2800 mm (110 in)
Weight 9300 kg (20,500 lbs.)
