The Anderson Selexx Series CNC Router
Have one to sell?
ConditionNew
New

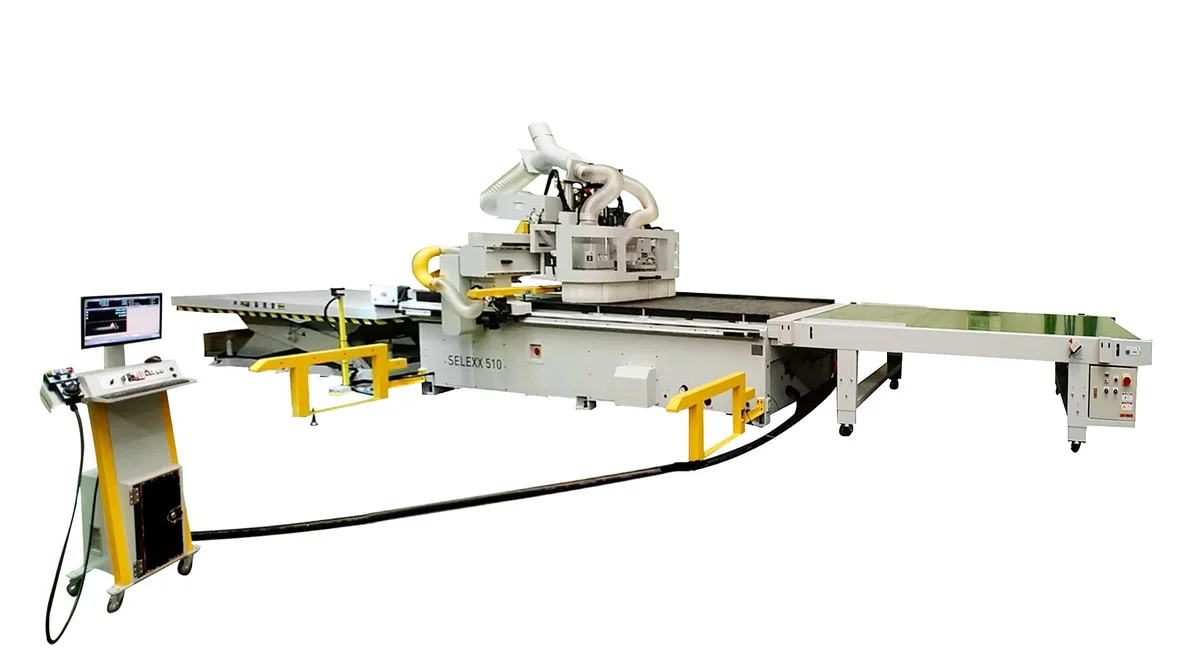

Introducing the Anderson Selexx Plus
An industrial-grade CNC machine that perfectly balances high performance and value, the Anderson Selexx Plus is engineered for durability and precision. It's a testament to our commitment to providing robust, reliable solutions that enhance productivity without compromising on quality. The Selexx Plus is not just a machine, but a strategic investment in your business's future.
High Performance Meets Value
Designed for users with demanding needs, the Selexx Plus is the ideal CNC solution for those who don't require the extreme speeds of our larger Stratos & Exxact Models, but still need a reliable, high-performance machine.
Key Features:
• Variety of Table Sizes: Choose the size that fits your needs.
• Aggregate Capability & Ride-Along Tool Changer: Eliminates wear caused by up to 500 unnecessary rapid traverses per shift.
• Standard 10 Inches of Z: Perfect for tall parts, pod work, fixture work, prototyping, or 3D parts.
• Standard Multizone Table: Automatically activates the correct vacuum zones for your different sheet or part sizes.
• Choice of 8 Automatic Pop-Up-Pins or Steel Pop Up Rails: Both are square and referenceable for parts or sheets.
• Pre-Wired and Pre-Machined: Ready for an automatic material pusher sweeper device or integrated automatic material conveyor to be added or retrofitted in the field.
No. of vacuum zones 3
Table size X 3100 mm (122”)
Table size Y 1550 mm (61”)
Stroke of X-axis 3180 mm (125”)
Stroke of Y-axis 1835 mm (72”)
Stroke of Z-axis 250 mm (9.84”)
Rapid travel Speed in X 80 meters/min (3,149”/min)
Rapid travel Speed in Y 60 meters/min (2,362”/min)
Rapid travel Speed in Z 20 meters/min (787”/min)
Maximum Rapid Traverse 100 meters/min (3,937”/min)
Spindle Power 12 HP / 18 HP
Max. Speed (rpm) 22,000
Clamping system HSK-63
Ride along tool changer 8 / 10
Boring block 5+5 or 10+7
Vacuum pump 10/25/40 HP
Controller FANUC 0i
Dimensions: A 4700 mm (185”)
B 4,250 mm (167”)
C 2,300 mm (90.5”)
Weight 4,600 Kg (10,132 lbs.)
